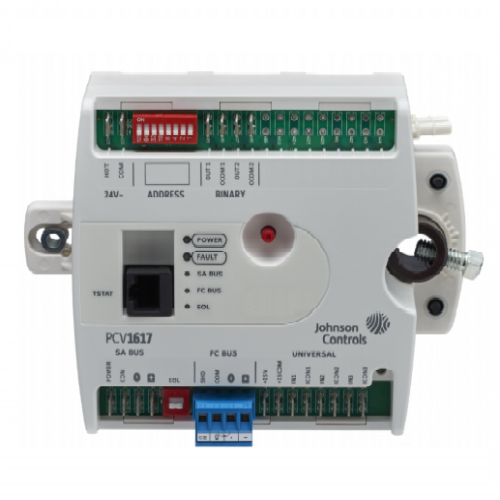

CH-PCV1617

• Standard BACnet Protocol

Provides interoperability with Johnson Controls and third-party Building Automation System (BAS) products that use the widely accepted BACnet standard.

• Standard Hardware and Software Platform

Uses a common hardware design throughout the family line to support standardized wiring practices and installation workflows. Also uses a common software design to support use of a single tool for control applications, commissioning, and troubleshooting to minimize technical training.

• State-Based Application Control Logic with Adaptive, Automatically Tuned Control Loops

Prevents simultaneous heating and cooling, reduces commissioning time, eliminates change-of-season re-commissioning, and reduces wear and tear on mechanical devices.

• Universal Inputs

Allow multiple signal options per channel to provide input flexibility.

• Complete Product Family with Modular Components

Meets any HVAC equipment or building system control requirement using only the needed components.

• Three Universal Inputs

Allow an increased number of low cost sensor options.

• A State-of-the-Art, Digital Non-Flow Pressure Sensor

Provides 14-bit resolution with bi-directional flow operation that supports automatic correction for polarity on high- and low-pressure DP tubeconnections. This pressure sensor eliminates high- and low-pressure connection mistakes.

• A fast response actuator

Drives the damper from full open to full closed (90°) in 60 seconds to reduce commissioning time.

• FX-ZFR Wireless Field Controller (FC) or Sensor/Actuator (SA) Bus Interface

Both the FX-ZFR1800 Series Wireless and WNC1800/FX-ZFR182x Pro Series Wireless Field Bus (FX-ZFR Pro) provide a wireless alternative to hard-wired system counterparts, offering application flexibility and mobility with minimal disruption to building occupants.

• Wireless Field Controller (FC)/Sensor/Actuator (SA) Bus Interface (where available)

Provides a wireless alternative to hard-wired field bus networking and sensor connections, providing application flexibility, mobility, and minimal disruption to building occupants.

• Bluetooth® Wireless Commissioning Interface

Provides an easy-to-use connection to the configuration and commissioning tool.

• Auto-Tuned Control Loops

Reduce commissioning time, eliminate change-of-season re-commissioning, and reduce wear and tear on mechanical devices.

• Universal Inputs and Configurable Outputs

Allow multiple signal options per channel to provide input/output flexibility.

• Optional Local User Interface Display

Allows convenient monitoring and adjusting capabilities at the local device.

• BACnet Testing Laboratories™ (BTL) Listing

Ensures interoperability with other BTL-listed devices. BTL is a third-party agency which validates that BAS vendor products meet the BACnet industry-standard protocol.

• 32-bit Microprocessor

Ensures optimum performance and meets industry specification.

• BACnet Automatic Discovery support

Enables easy controller integration

• Integral end-of-line (EOL) switch

MS/TP Field Controllers have an integral end-of-line (EOL) switch that enables field controllers to be terminating devices on the communications bus

• Troubleshooting

Pluggable communications bus and supply power terminal blocks expedite installation and troubleshooting.

• Writable Flash Memory

Allows standard or customized applications to be downloaded from the CCT and enables persistent application data.

• DPT Feature

Models that include a DPT feature a state-of-the-art digital non-flow DPT to provide 14-bit resolution with bidirectional flow operation that supports automatic correction for polarity on high- and low-pressure DP tube connections; this pressure sensor eliminates high- and low-pressure connection mistakes.

• A Phone Jack-Style Connector on the FC Bus and SA Bus of the FX-PCV16

Supports quick connection to the Wireless Commissioning Converter, FX-ZFR or FX-ZFR Pro Series Wireless Field Bus System wireless routers, MAP Gateway, and network sensors.

• Fast Response Actuator

Models that include actuators feature a fast response actuator that drives the damper from full open to full closed (90°) in 60 seconds to reduce commissioning time.
