MODBUS Gateway

Giá: Liên hệ

Danh mục: Supervisory Network Controllers

The MODBUS Gateway is a communication interface device that integrates third-party MODBUS equipment into the BCPro system to monitor and control a wide variety of HVAC equipment, meters, and lighting

Hàng mới | Hàng hot | Lượt xem: 1071

Giới thiệu Chi tiết

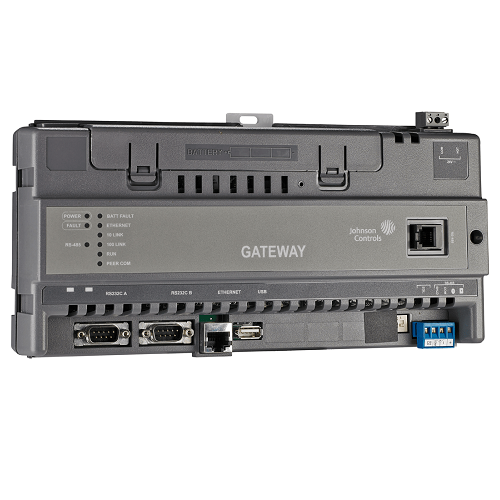

Modbus® Gateway

The Modbus® Gateway is a communication interface device that integrates third-party Modbus equipment with the BCPro™ system to monitor and control a wide variety of HVAC equipment, meters, fire alarm panels, and lighting.

You can configure the gateway for the Modbus IP or Modbus RTU application protocol.

Features

• Efficient gateway for use with the BCPro Workstation to communicate between Modbus RTU or Modbus TCP and BACnet® IP.

• Support for up to 100 Modbus field devices under a single gateway.

• Support for the integration to the BCPro Workstation so that gateway configuration can be done using a single login identity.

• Basic diagnostics provided

Selection chart

Code number	Description
CN-BIG1970-0	Modbus Gateway: Requires a 24 VAC power supply. Includes one Ethernet port, Modbus port, and MSBAS1020-0 Data Protection Battery. Supports up to 100 devices on the Modbus trunk.
