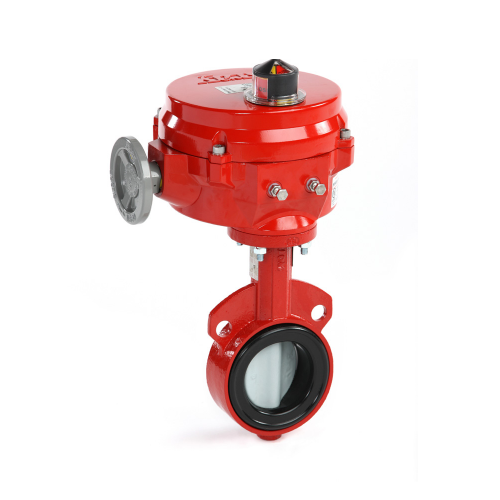

VA-9070

Giá: Liên hệ

ON/OFF, Floating and Proportional Control Rotary Actuators for Butterfly Valves The actuator is specially developed for use with VFB butterfly valves in the HVAC industry. Two isolated auxiliary switches and an electrical heater are standard in these series. The protection class is IP65 to ensure a dust-proof and shower-proof from all angles. An hand operation is standard. When hand operation is active, a yellow ring is displayed and the actuator motor is not operative. the position indicator

Hàng mới | Hàng hot | Lượt xem: 2284

Giới thiệu Chi tiết

The VA-9070 Series Electric Rotary Actuators for
Two-Position and Modulating Service are designed
for direct mounting on VFB Series Butterfly Valves.
The VA-9070 is available in six different sizes,
for two-position and modulating service on VFB
Series PN16 (6/10) DN50...DN500 2-way Wafer
Butterfly Valves.
Futures

Exact positioning ensures precise flow control
Complete opening and closing from 100% to 0
Range from 68 Nm to 2034 Nm
Self-regulating heater as standard
Construction optimized for operation with butterfly valves
Two isolated auxiliary switches as standard

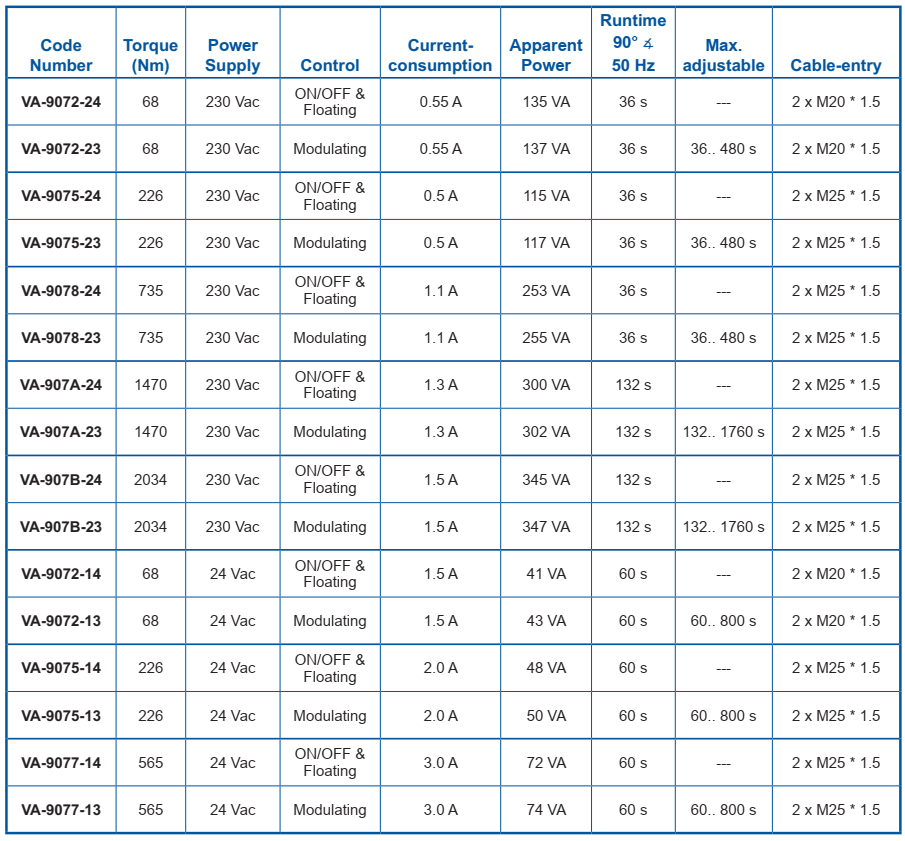

Control, Electrical Data, Runtime:

Chi tiết sản phẩm đang được cập nhật
