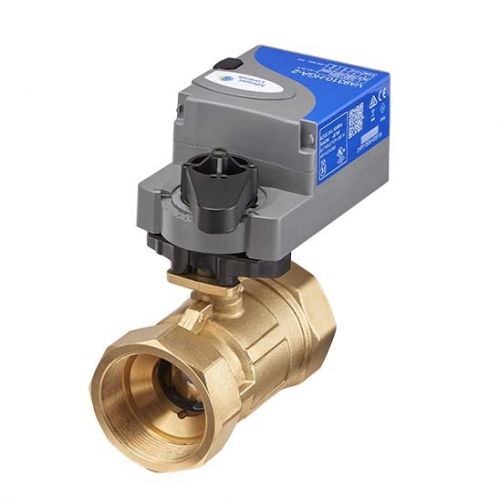

VA9300 Series

VA9300 Series
Electric Non-Spring Return Valve Actuator

Features
• automatic signal input detection, on/off,
floating, and proportional control with
adjustable span and offset
• line voltage on/off and floating models
• high speed on/off and floating models
• easy conversion to valve operation—same
actuator used for dampers or valves
• optional accessory kit
• backward compatible auxiliary switch kits
and auxiliary potentiometer
• self-calibrating input signal to adjust stroke
• electronic stall detection
• microprocessor-controlled brushless DC
motor
• mode configuration switches
• integral cables with colored and numbered
conductors
• optional integral 1/2 in. (13 mm) threaded
conduit connectors
• plenum-rated models
• small footprint
• M9106, M9109, and M9108 series
actuators replacement
• position indicator handle
• same weathershield as M9203 and M9208
series actuators
• NEMA5/IP54 enclosure
• underwriters laboratories Inc.® (UL), CE
Mark, and RCM compliance
• manufactured under international
standards organization (ISO) 9001 quality
control standards
• 100,000 cycles and 2.5 million repositions
• 5-year warranty
