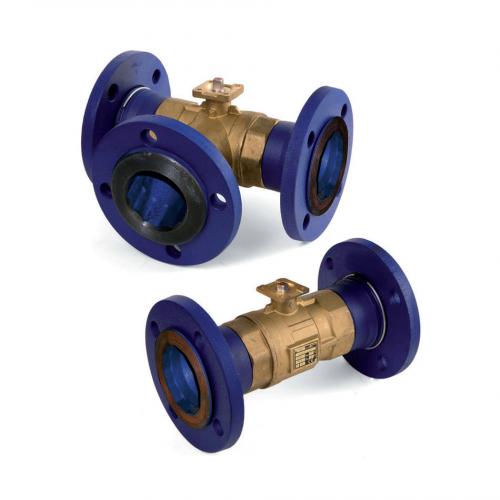

VG1000 Flanged

Giá: Liên hệ

DN65...150, PN16 The VG1000 series control ball valves are used for the water control of air treatment systems in ventilation and air conditioning units as well as heating system. They are operated by remote mounted spring return and non spring return actuators.

Hàng mới | Hàng hot | Lượt xem: 2168

Giới thiệu Chi tiết

Features

2-way and 3-way mixing
Body rating PN 16
Hot water, chilled water, 50/50 glycol solutions and 172 kPa saturated steam for HVAC Systems
Valve fluid temperature limits -18 to 140 °C
Maximum close-off pressure 2-way: 689 kPa / 3-way: 345 kPa
Maximum recommended operating pressure drop 207 kPa for quiet service
Flow characteristics: 2-way: Equal percentage (according EN60534-2-4); 3-way: Equal percentage (according EN60534-2-4); Flow characteristics of Inline port (Coil) and linear percentage flow characteristics of angle port (By-pass)
Rangeability greater than 500:1
Leakage: 2 and 3-way: 0.01% of maximum flow, control port, ANSI/FCI 70-2, Class 4; 3-way: 1% of maximum flow, by-pass port
