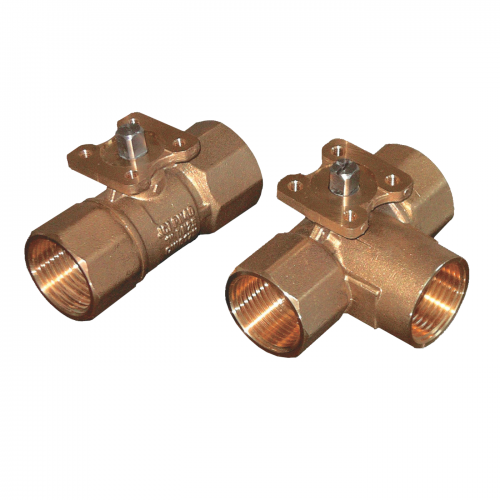

VG1000 Threaded

Giá: Liên hệ

DN15...50, PN40 The VG1000 series ball valves are used for the water control of air treatment systems in Heating, Ventilating and Air Conditioning (HVAC) systems. They are operated by direct or remote mounted spring return and non spring return actuators.

Hàng mới | Hàng hot | Lượt xem: 1138

Giới thiệu Chi tiết

FEATURES

Forged brass body
KVS 1...63
2-way, 3-way mixing and diverting configurations
Inherent equal percentage flow characteristic in the in-line port of all valves
BSPP female threaded body connections
Service

Hot and cold water: -30...95°C with VA9104 series
(140°C with M9000-561 Thermal Barrier)
-30...100°C with VA9203, VA9208, VA9308 and VA9310 series
(140°C with M9000-561 Thermal Barrier)
Water with glycol to max 50% volume
Steam to max 100 kPa at 120°C with thermal barrier.
