T7600 Series

Giá: Liên hệ

Nhãn hiệu: Johnson Controls

Danh mục: Thermostat

The T7600 Series Modbus® LCD thermostats are designed to control heating and cooling through air conditioning unit in commercial and residential application. Typical applications include the control of fancoil units, floor heating, packaged terminal air conditioners and combination of heating and cooling equipment. As part of the system, T7600 series thermostat can control 2-way or 3-way valve and multiplespeed line voltage fan or ECM fan. T7600 with its large LCD screen displays the working mod

Hàng mới | Hàng hot | Lượt xem: 3240

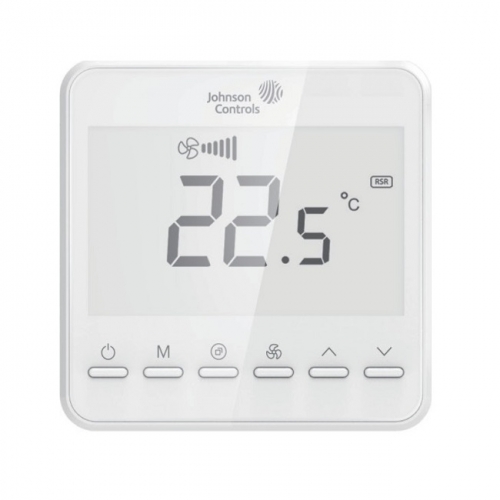

T7600 Modbus LCD Thermostat

Features

  • Flush mount for a stylish appearance
  • Large screen backlighted with timeout
  • Stand Alone or Communicating in Modbus® RTU
  • 2 or 4-pipes ON/OFF or Proportional
  • Multispeed Fan or Proportional Fan speed (ECM)
  • Customizable display can show actual temperature or setpoint only
  • Protected against misuse in public spaces
  • Configurable inputs
  • Function, On/Off Timer, ESP filter control



Technical specifications

Supply Voltage 110-240 VAC 50/60 Hz
Power consumption Max. 5VA
Terminations Screw terminal block
Communication Modbus RTU
Wire size Screw terminal block: 1.0-1.5mm² rigid conductor for 5mm connector; 0.14-1.5 mm² rigid conductor for 3.5mm
connector
Mounting Flush-mounted
Temperature measurement range 0 to 49℃ (32 to 99oF)
Temperature accuracy 1℃ (2oF)
Default temperature set point range 5.0℃ to 35.0℃ in 0.5˚ increments
Ambient conditions Operating: 0 to 40℃ (32 to 104oF), 10 to 90% RH, noncondensing, 29℃ (85oF) maximum dew point
Storage: -20 to 60℃ (-4 to 140oF), 5 to 95% RH, noncondensing
Protection class IP20
Pollution degree 2
Heat and fire resistance category D
Temperature for ball pressure test 125℃
Limitation of operating time Continuous
Product category Type 1.B P42(74)
Internal temperature sensor type 10K NTC type II
Shipping weight Approx 300g
Compliance CE mark
RCM mark, Australia/NZ emissions compliance
RoHS, REACH,



Thương hiệu:Johnson Controls
Xuất xứ:China
Màu sắc:Trắng
Trọng lượng:300 g
Kích thước:87.75 x 87.75 x 39.20 mm

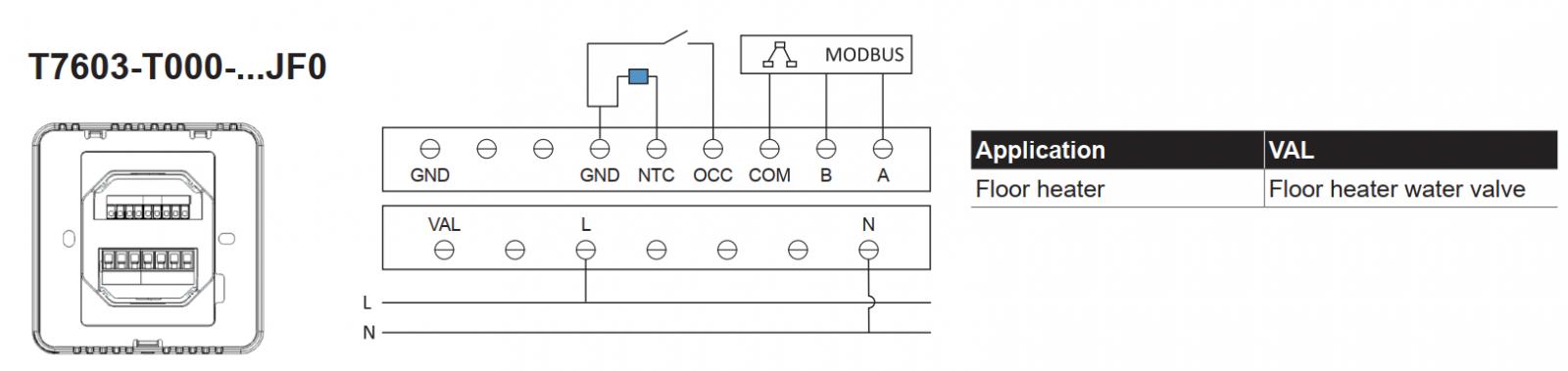

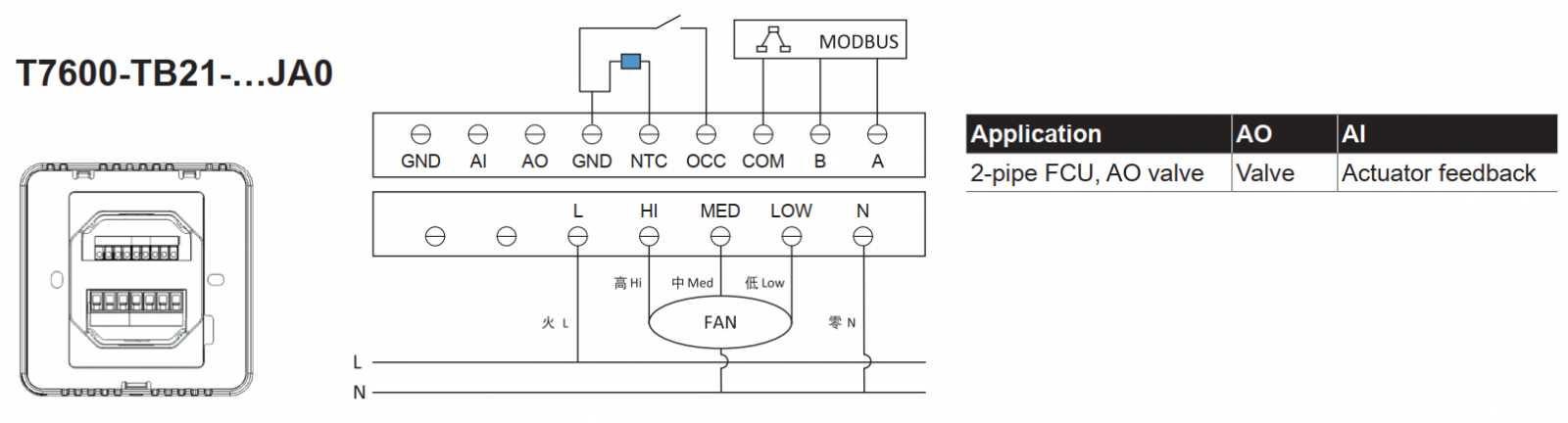

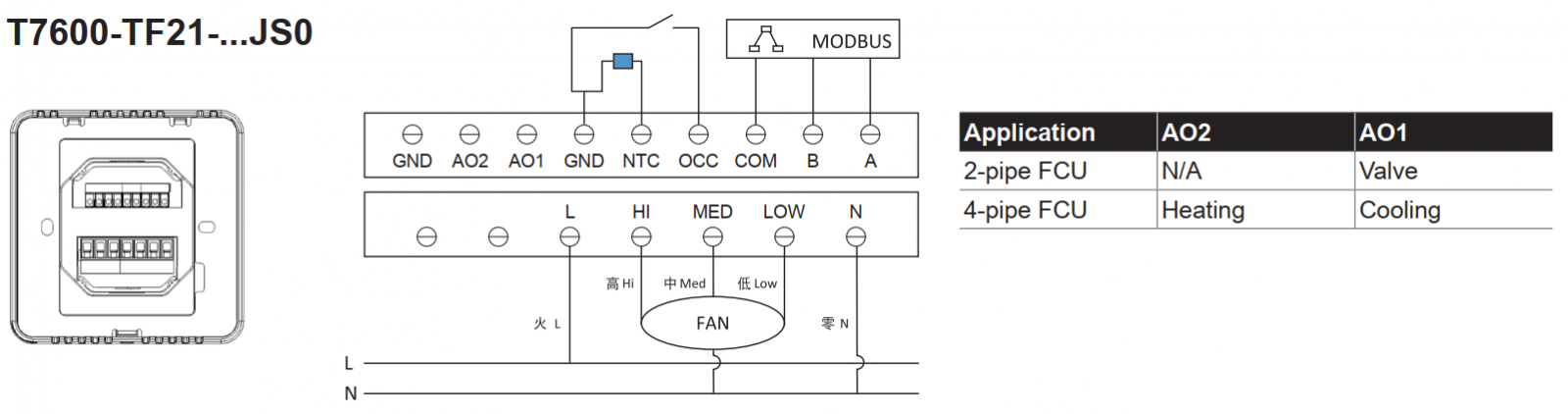

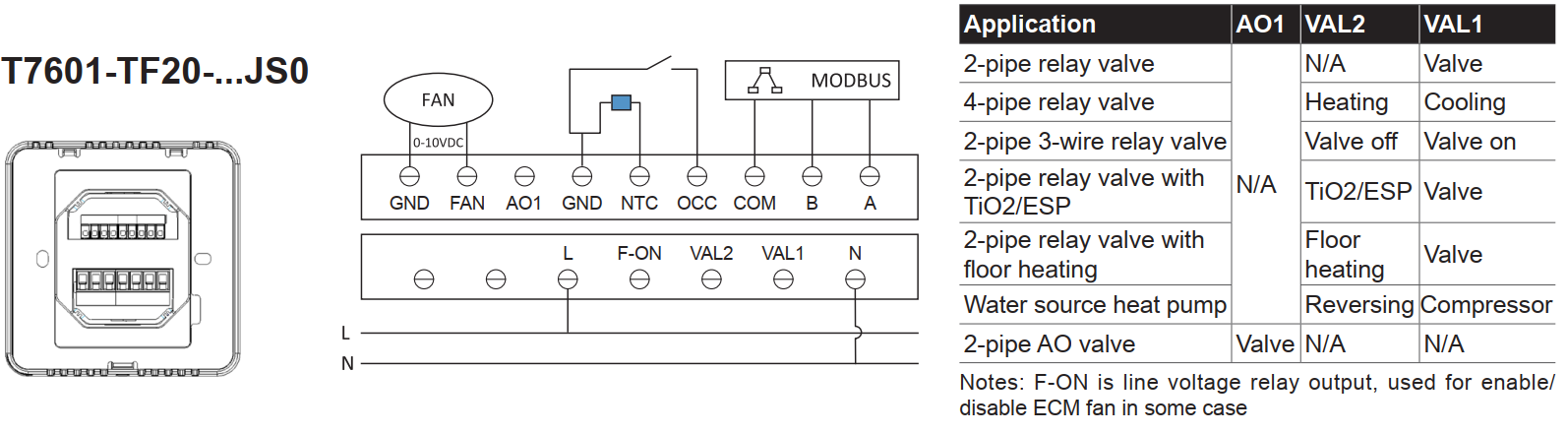

Model:T7600-TB21-9JA0, T7600-TF20-1JS0, T7600-TF20-9JS0, T7600-TF21-1JS0, T7600-TF21-9JS0, T7601-TF20-1JS0, T7601-TF20-9JS0, T7603-T000-1JF0, T7603-T000-9JF0
