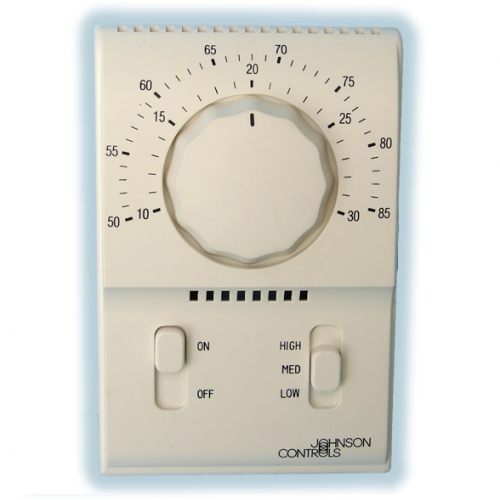

T2000 Series

GENERAL DESCRIPTION

The T2000 thermostats provide heating, cooling and ventilating control for year-round air-conditioning units in commercial, industrial or residential installations. There are model for cooling only, heating only and heating-cooling fan coil system can be integrate with the manual or remote heat-cool changeover control. Integral with heavy duty slide switches provide HIGH-MED-LOW fan speed selection and ONOFF or HEAT-OFF-COOL system control. T2000 series thermostat is suitable for 2-pipe or 4-pipe fan coil application, which can be fitted with the VB5000 zone valve and VA7010 actuator. These thermostats are used for low / line voltage application, and typical uses include fan coils, electrical heaters and air handling units

FEATURES

 - Rust-proof plastic base and cover

 - System "OFF" position breaks all circuits

 - No leveling and vibration problems

T2000ACx-0C0

On the T2000ACx-0C0, switch positions HEAT, OFF, and COOL provide separate temperature control in the controlled space. A second switch controls the LOW-MED-HIGH fan motor speeds.

T2000ECx-0C0

On the T2000ECx-0C0, switch positions provide ON and OFF temperature control in the controlled space. A second switch controls the LOW-MED-HIGH fan motor speeds.
