RS-7000

RS-7000

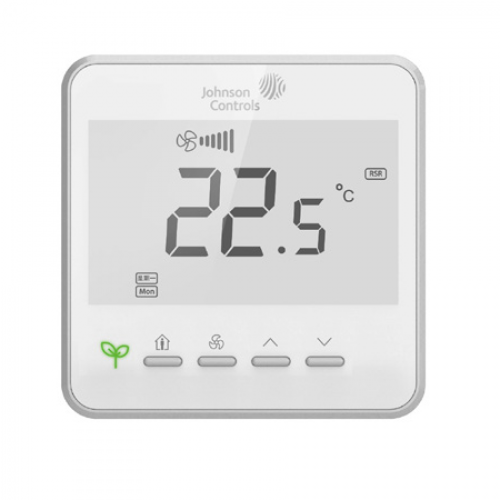

Flush-Mounted Analog Sensor

-The Flush-Mounted Analog Sensor RS-7000 Series with LCD
is an electronic room command module designed to work with
Johnson Controls® controllers in heating, ventilating and air
conditioning (HVAC) systems. Models in this series monitor
the zone temperature and humidity, and transmit data to a feld
controller using up to three analog outputs.

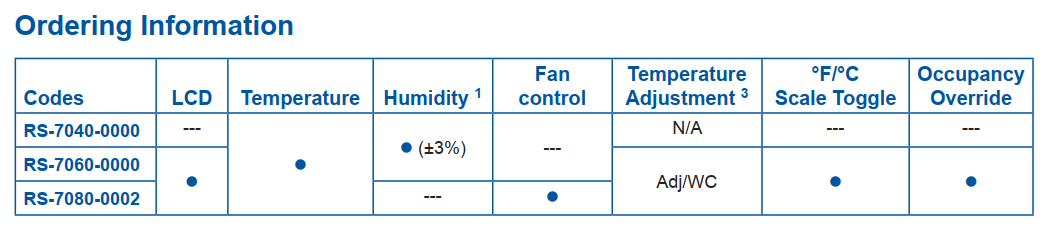

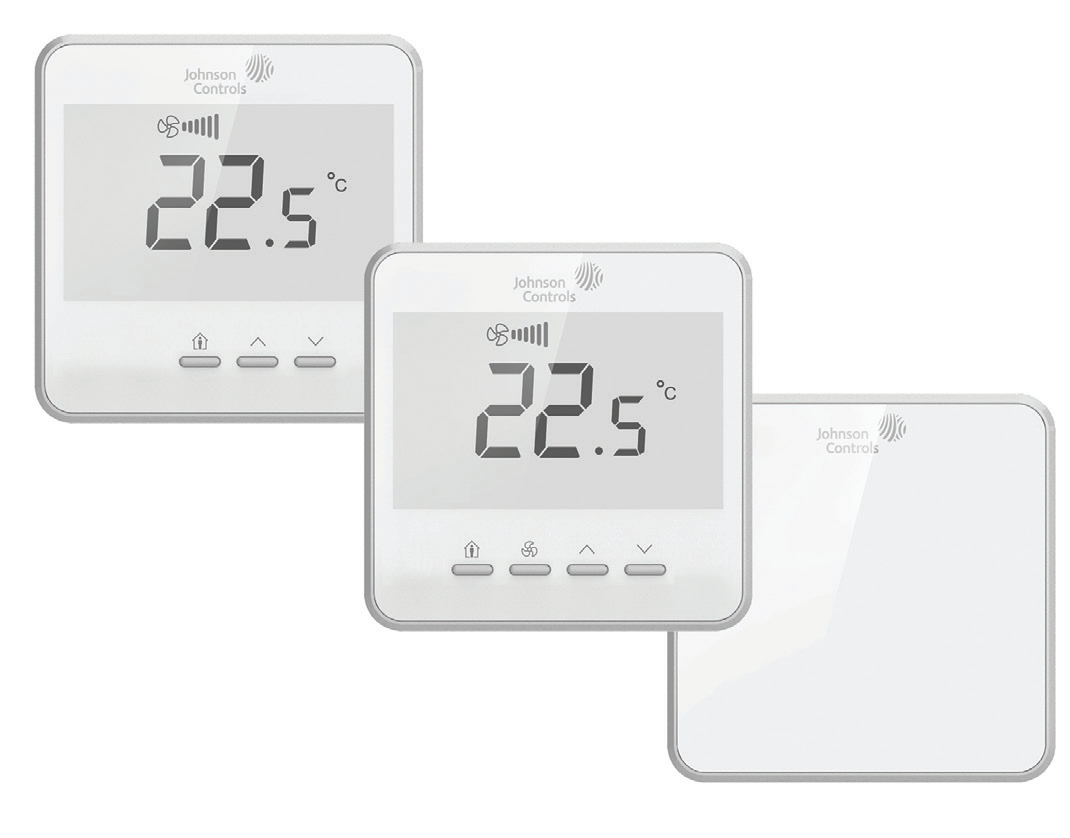

- RS-7060-0000 can toggle between Temperature and Humidity
(RH) on the display, depending on the desired default display.
The temperature only model RS-7080-0002 includes Fan mode
push button to set the desired fan speed (OFF-LOW-MEDHIGH-AUTO). Both models with display have occupancy button,
which allows user to select when the zone is occupied, to set
the comfort mode only when is necessary.
- The model without display RS-7040-0000 provides a combined
measurement of the zone temperature and humidity.
- Installation is quite easy, given the possibility to confgure the
Setpoint Mode and temperature limits from the sensor display,
during installation.
Features and Benefts

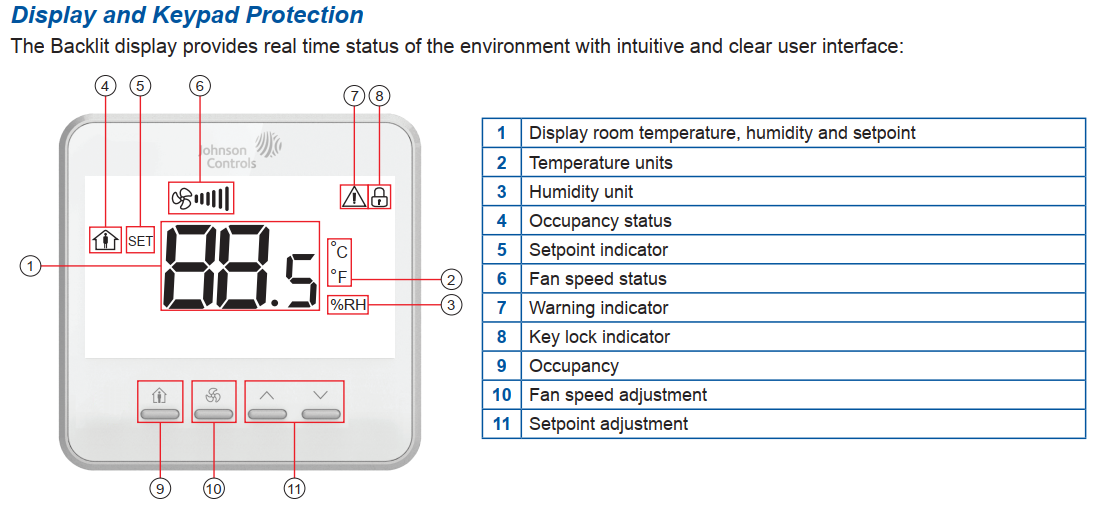

• Large backlit display in a low profile enclosure
Display larger than 40% of front area, provides real time status of the environment with intuitive and clear user
interface.
• Flush mount installation

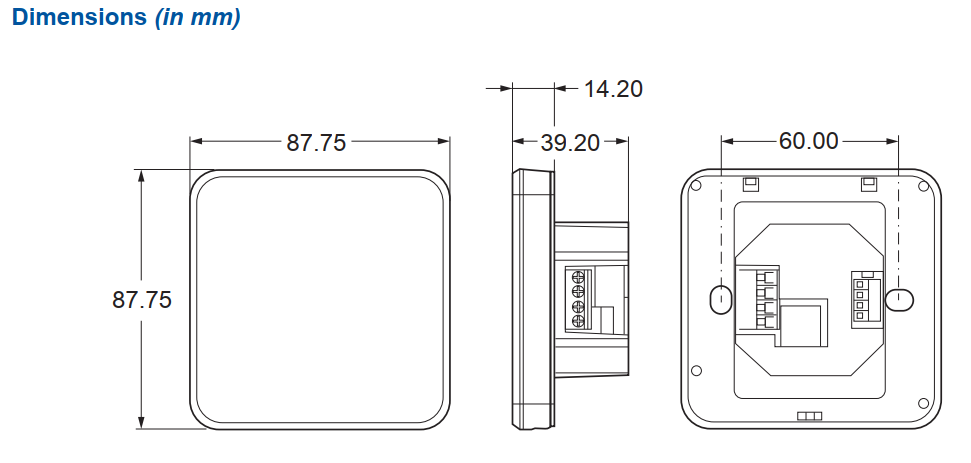

Suitable for various installation boxes, flush mount offers low profile of only 14 mm outside the wall.
• Temperature sensor with combined humidity for best comfort
Models in the range offer Fan Speed control button or combined temperature and humidity sensor for best comfort.
• Configurable options reduce stock need
The Setpoint mode Adjust or Warmer/Cooler and temperature limits can be configured from the display during the
installation.
• Customizable display helps tenants to meet building policy
Sensors can be configured to show, temperature, humidity or setpoint only, in addition the keypad can be locked to
avoid misuse in public spaces.

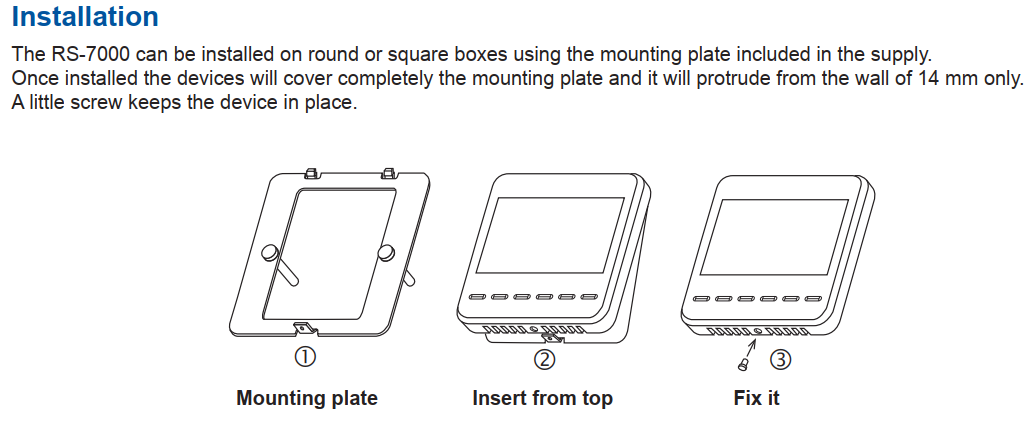

• Mounting plate and protection cap make installation safe
The mounting plate allows installation without opening the sensor. The removable e repositionable protection
cap protects the sensor during commissioning and decorating. Both avoid the risk of component damages during
installation phase.
