Bộ Điều Khiển RCU

Lighting. RGB & Tunable White Color Control Curtain / Blinde Control
Air Conditioning Free Programmable Pages
Hotel-DND/MUR Touch Vibration Sensitivity
•  Proximity
•  Carbon dioxide (CO2)
•  Temperature and Moisture Sensor
•  Custom Modes
•  Timer Scenarios

The iX3 can control heating and cooling operating modes with 2-points, Continuous and PWM thermostat functions. Air conditioner control is availa-ble on iX3 and can control AC gateway devices. iX3 has fully
touchable LCD screen with IPS-display technology which provides low energy cost and good view angle. The device provides an adjustable LCD backlight for user comfort.
Switching, toggle, dimming, shutter/blinds controls, predetermined scenes by users, value functions that
can send presented values, 2 channels control func-tions, step switching, music control and thermostat
extension features are available

Interra iX4 is a wall-mounting room controller device with an integrated temperature, humidity, brightness, proximity and air quality sensor. iX4 can have integrated Wi-Fi and Blue-tooth features. iX4 can be easily and clearly operated through the friendly interaction interface. The iX4 can control heating and cooling operating modes with 2-points, Continu-ous and PWM thermostat functions. Air conditioner control is available on iX4 and can control AC gateway devices. iX4 has fully touchable LCD screen with IPS-display technology which provides low energy cost and good view angle. The device provides an adjustable LCD backlight for user com-fort. The product range has 8 different models with AQI,
without AQI, with Wi-Fi/Bluetooth and without Wi-Fi
Up to 128 functions can be controlled separately

Designed as a central hub for all your automation systems. It can control a range of systems, including switches, sensors, lighting, heating, cameras, and alarms. You can control the system from your mobile device by downloading the Interra Pro app from the App Store or Google Play
Control your home using voice commands with assistants like "Hey Interra Voice Assistant”
Security systems can be controlled via mobile and panel applications and also available cameras can be displayed with Interra touch panel. desired operations can be made according to daily, weekly, monthly, annual or deter-mined schedules.

Sip server provides Sip communication between touch panel, outdoor unit, IP phone and like another component in PBX systems
Supporting 100 calls concurrently, 5000 clients, and all kinds of SIP Clients (Mobile phones, IP Phones, Intercoms, Touch Panels...etc)
Expected lifetime of 10years
Easy to configure via Web Interface

Hotel room management server
Concierge Server can handle requests, Alarm Conditions, Announcements, Messages, Invoices, Smart Metering, Calling ‘’Taxi, shuttle, SPA booking, pet Service Notification with texts and sound
control KNX, EIO devices, and support services over the touch panels. Concierge Server can.
supports an unlimited number of clients,  ROOM / FLAT Controls and multi-control user types.
Web-based and user-friendly control systems

Interra iBMS Logic Server is your most straight forward way to program complex logic in KNX/EIB, Modbus, BACnet, and networks. It will enable you to efficiently customize building automation processes, quickly delivering unlimited flexibility benefits to end users in a cost-effective way
Interra iBMS Logic Server is an embedded platform with an integrated Ethernet, USB, KNX/TP and RS485/RS-232 serial interfaces.
supports iOS Siri and Google Voice control via native apps available in App Store and Google Play

iS12 Master Control creates flexible and complex logic configurations.
iS12 Master Control is designed to  communicate with Node based programming/drag and drop editor, send data to BMS between devices using different protocols
It supports up to 10.000 different data points
BACnet / MODbus / MQTT / KNX protocol

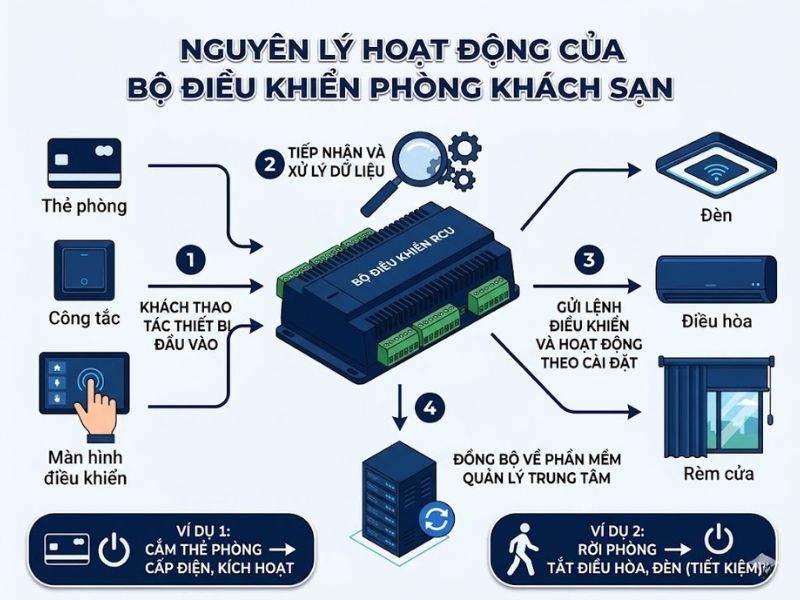

ACTOP-A7 is a hotel guestroom control unit(RCU) which is the brain of whole system. It is very functional with curtain motor interface.
Signal Interface RJ45, RS485 .
Relay output 10A/30A
 36 path IO input and output 8-way PMW dimming output
 4 circuit dry point curtains output

The combo actuator is a KNX certified device available with
4, 8, 12, 16, 20 and 24 channels.
Modules are supplied over KNX bus and do not need any
other external power supply.
The communication of the devices via the KNX bus enables
information exchanges with KNX sensors and the  integration with a building management system


With Ethernet I/O Modules' inputs,
it is possible to create smart rooms and create scenarios with conventional products like magnetic contacts, push buttons, and sensors.
Shutter/blind 230VAC configuration can be with 2 outputs of the ethernet I/O module
Up to 10 different scenarios can be created by performing the desired configurations
