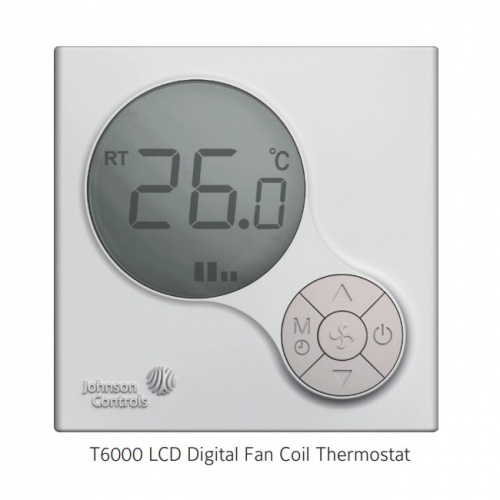

T6000 Series

Product Overview

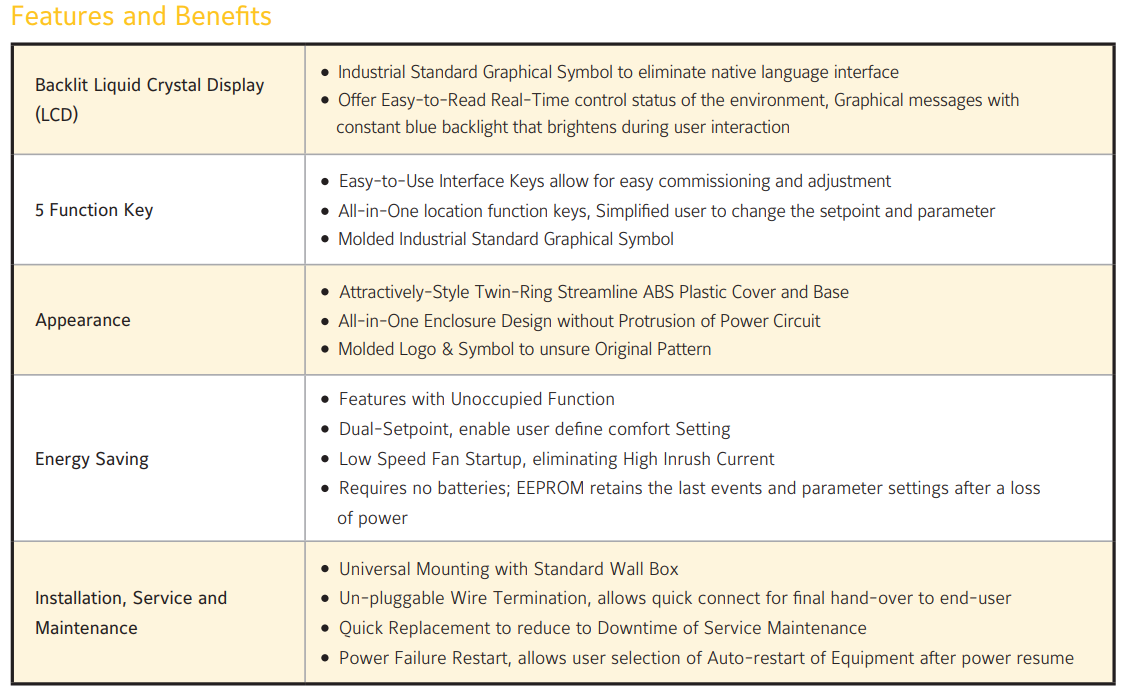

T6000 are LCD display (with Backlit) fan coil unit thermostat that design for cooling or heating fan coil unit with valve actuator control application. Integral with System On/Off button that allows user to shutdown the T6000 and cutoff the output power for fan (except Valve Actuator Output power). Simply pressing the fan speed button, allows user selection of Auto-High-Med-Low fan speed. All fan output by relay that can withstand max. of 5Amp. operating current.

The T6000 thermostats come with 24-hours timer that allows user to schedule On-Time or Off-Time for the fan coil depending user needs. Additional Dry-contact for Occupancy mode that allows better comfort control and to achieve energy cost saving.

Standard 86 x 86mm size allows for 75 x 75 x 55mm standard wall box installation.

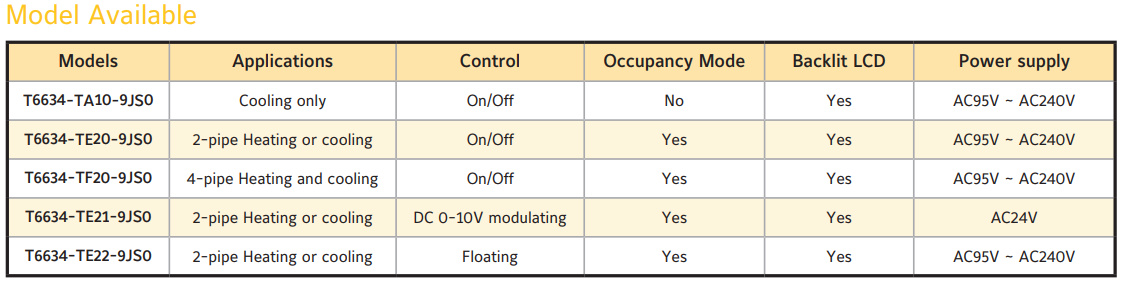

• - The Models T6634-TA10/TE20/TF20-9JS0 are used for the application with On/Off valve actuator. (eg. VA7010 with VG4000)
• - The Model T6634-TE21-9JS0 is used for the application with modulating valve actuator. (eg. VA7482 with VG4000)
• - The Model T6634-TE22-9JS0 is used for the application with floating valve actuator.(eg. VA7480 with VG4000)

IMPORTANT:

Use this T6000 Series Fan Coil Thermostat only as an operating control. Where failure of malfunction of the T6000 Series Thermostat could lead to personal injury or property damage to the controlled equipment or other property, additional precautions must be designed into the system. Incorporate and maintain other devices such as supervisory or alarm systems or safety or limit controls intended to warn of, or protect against, failure or malfunction of the T6000 Series Thermostat.
