NSA-7000 Series

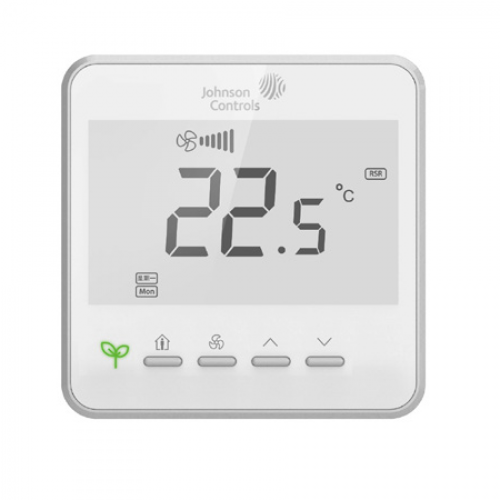

NSA-7000

Flush-Mounted Network Sensor

- The flush-mounted NSA7000 series network sensor with LCD
is an electronic room sensor designed to function directly
with Johnson Controls® BACnet® MS/TP digital controllers
in heating, ventilating and air conditioning (HVAC) systems.
Models in this series monitor the zone temperature and
humidity, and transmit this data to a feld controller on the
Sensor Actuator (SA) bus.

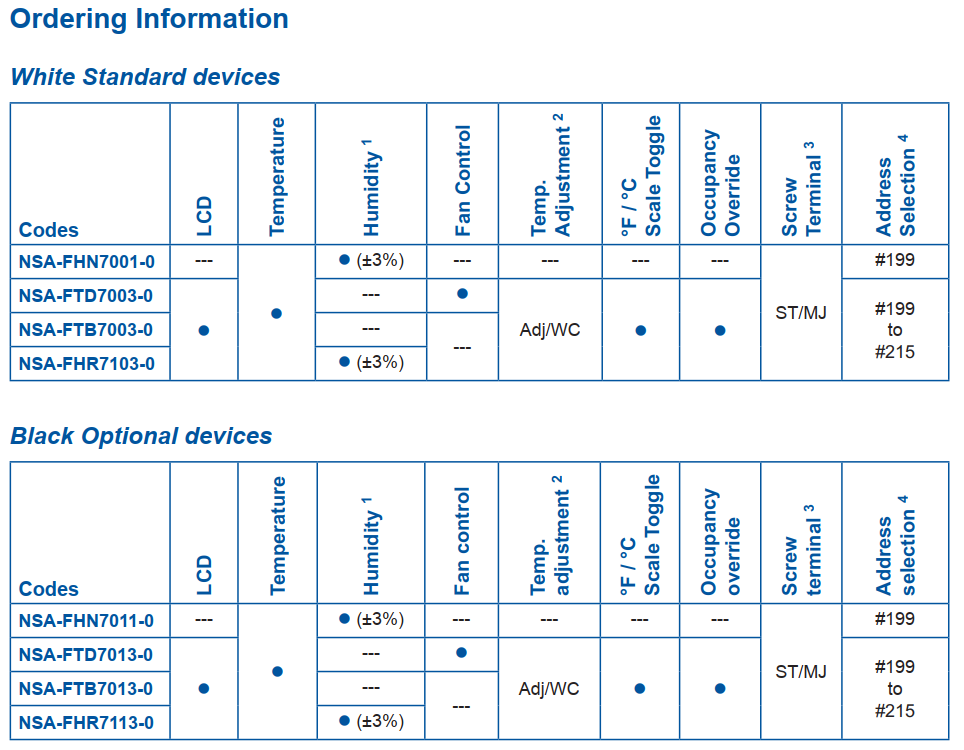

- NSA-FHR71x3-0 can toggle between Temperature and RH on
the display, and has the capability to set the desired default
display to either Temperature or RH.
- The temperature only model NSA-FTD70x3-0 includes Fan
mode push button to set the desired fan speed (OFF-LOWMED-HIGH-AUTO). All models have occupancy button, which
allows user to signal when the zone is occupied, to set the
comfort mode only when is necessary.
- The model without display NSA-FHN70x1-0 has not buttons but
provides an accurate measurement of the zone temperature
and humidity.
- Installation is quite easy, given the possibility to confgure the
functionality from the display itself and through the METASYS
controllers confguration tool. Connection to the controller is
flexible, each model supports screw terminal and modular jack
connections also.

Features and Benefts

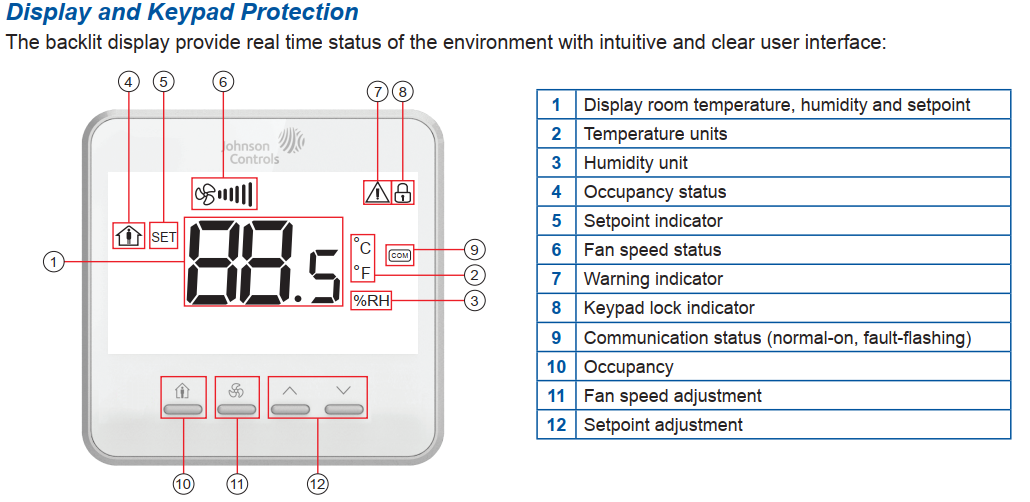

• Large backlit display in a low profile enclosure
• Suitable for Sensor and Actuator Bus (SA Bus)
• Customizable display Toggle humidity, temperature in °C or °F or Setpoint only
• Configurable Adjust or Warmer and Cooler Setpoint functionality reduces items at stock
• All with built-in modular jack and screw terminal connector for an easy installation
• Configurable Setpoint limits and keypad lockable help tenants to meet building policy
• Mounting plate avoid to reduce installation complexity
• Removable and repositionable protection cap protects the sensor during commissioning
• Flush mount installation offers suitable for European boxes

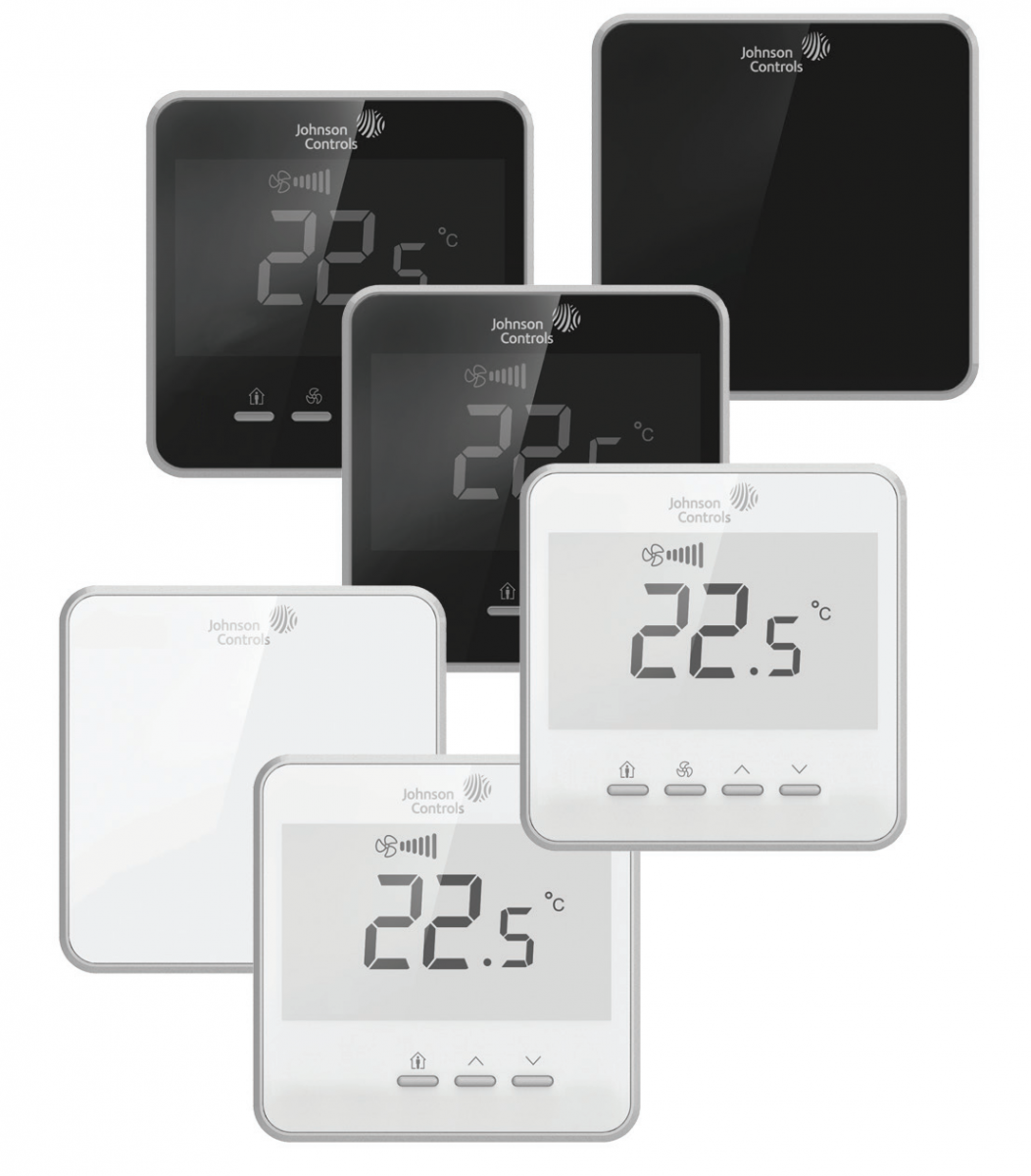

• The white front panel can be customized in black or other color with a minimum order quantity

SA Bus Network
The NSA-7000 Network Sensor can be connected to Metasys® controllers through the SA Bus, together with IOMs, VSDs,
and other network sensors with only four wires. The controller provides power for subordinate devices connected to the SA
bus, including Network sensors. For best performance the recommended maximum number of NSA-7000 sensors, in a mixed
confguration, is four units per SA Bus.
The NSA-7000 devices with display can be easily programmed using the keypad without the use of any tool, once the
communication address and the Setpoint Mode Adjust or Warmer and Cooler is defned, the device becomes visible from the
Controller Confguration Tool (CCT).
All NSA-7000 sensors with display can be set with any SA Bus address between 199 to 215, whilst the model without display
has a fxed address of 199.
Installation

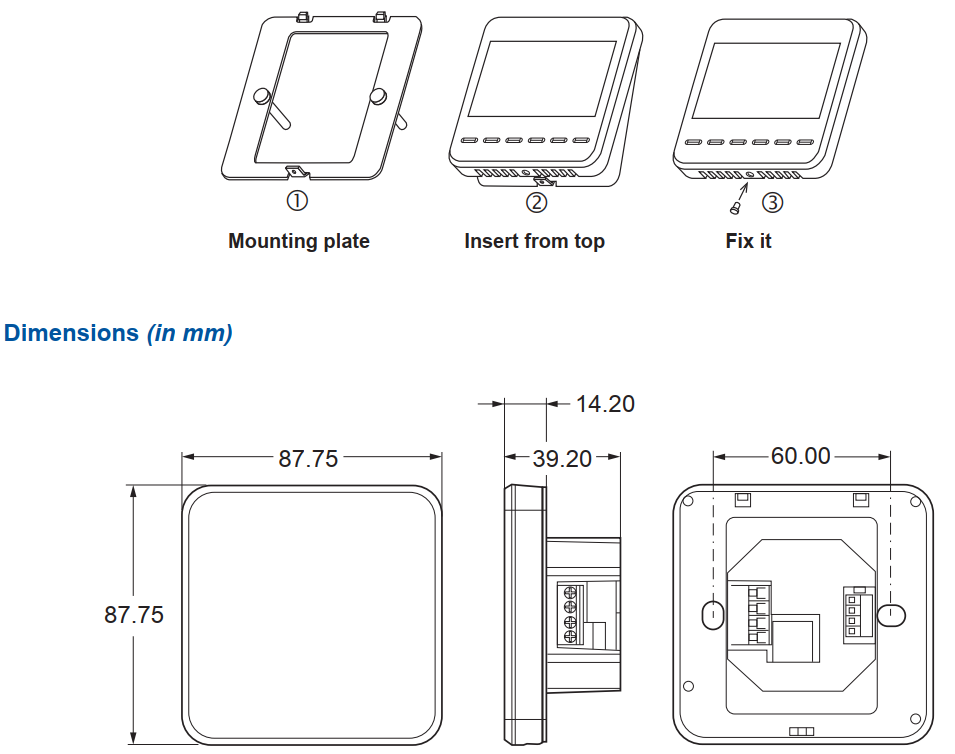

The NSA-7000 can be installed on round and square boxes using the mounting plate included in the supply.
Once installed the devices will cover completely the mounting plate and it will protrude from the wall of 14 mm only.
A little screw keeps the device in place.
