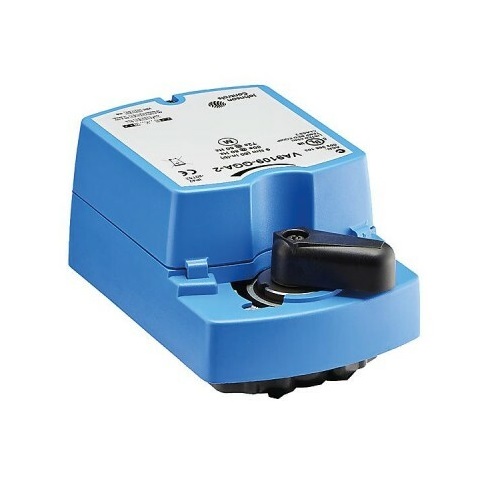

VA9109-xGx-4 Series

The VA9109 Series Actuators are direct-mount, non-spring return electric valve actuators that operate on AC 24 V power. Use these synchronous motor-driven actuators to provide accurate positioning on Johnson Controls® VG1000 Series DN15, DN20, DN25, DN32, DN40, and DN50 (1/2, 3/4, 1, 1-1/4, 1-1/2, and 2 in.) ball valves in HVAC applications. The VA9109 Series Electric Non-Spring Return Actuators provide a running torque of 80 lbin (9 Nm). The nominal travel time is 60 seconds at 60 Hz
