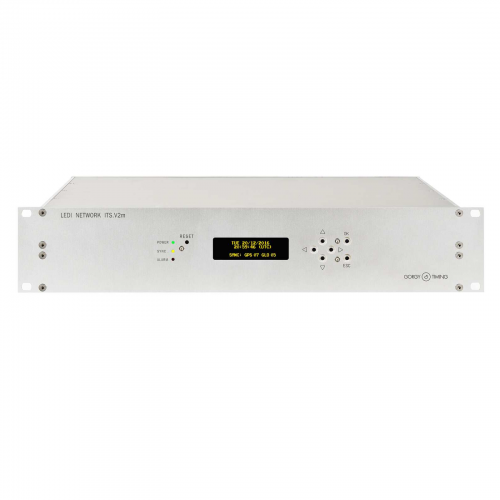

LEDI® NETWORK ITS v2m 2U

Key features
• Power Supply Redundancy 18-36 or 36-72 VDC with 115-230 VAC.
• Configurable priorities of synchronization inputs.
• Compensation of input delay due to transmission distance
and threshold setting for security.
• Time Base and algorithm ensuring output accuracy up to 50ns
when synchronized to GNSS.
• Multiple synchronization outputs of different types de time code.
• Time can be configured individually on each output, via DST and
Offset.
• PPS and 10Mhz output (available with OCXO oscillator only) via BNC
connectors.
• Alarm management via SNMP TRAP and two static relay outputs
on screw terminal for synchronization and power supply alarms.
• Manual or automatic adjustment for transmission delay.
• System Event Journal.
• Operational within 1 minute.
• Local or UTC time on the digital display.
Network Protocols
• NTP (v2, v3, v4)
• NTP Client/Server, Broadcast, Multicast
• SNTP (v4)
• HTTPS
• SNMP (v1, v2c, v3)
• IPv4 / IPv6. (DHCP v4 / v6 compatible)
• FTP
• SYSLOG
• PTPv2 IEEE 1588

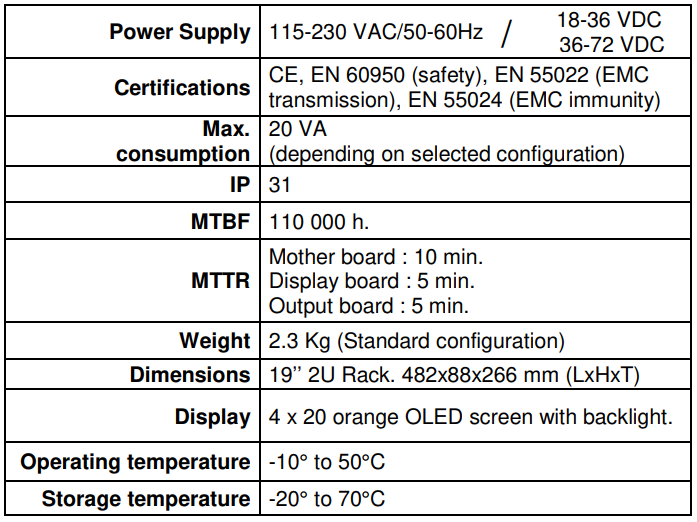

Specifications
