Nhãn hiệu: Johnson Controls
Danh mục: Sensor

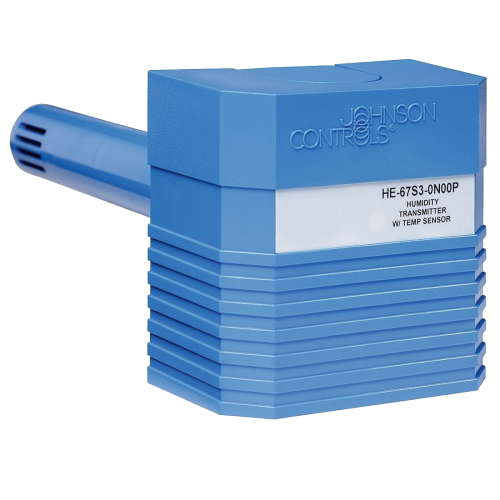

TRUERH™ Humidity Element with Temperature Sensors
Description
The HE-67xx Series Humidity devices house both a humidity and a temperature sensor in a wall or duct-mount style. The humidity sensor is capable of measuring Relative Humidity (RH) over the entire range of 0 to 100%, and its All-Polymer™ construction provides improved resistance to chemical corrosion. The TRUERH™ product line delivers devices with RH accuracy of either ±2% or ±3% RH. TRUERH™ humidity elements produce voltage output signals proportional to measured humidity for humidity indication. Temperature sensors are available in thin-film nickel, thin-film platinum, and silicon. The elements are powered with 14 to 30 VDC or 20 to 30 VAC and feature a user-selectable humidity output of 0 to 10 VDC or 0 to 5 VDC.
.png)
Features
| • TRUERH™ circuitry and calibration techniques for which patent protection is pending • All-Polymer humidity sensor patented sensing element provides accurate and reliable humidity sensing • Tested and calibrated with equipment certified to be in compliance with National Institute of Standards and Technology (NIST) guidelines • ±2% RH accurate model includes test and calibration equipment certificate of calibration conformance |
• Humidity and temperature sensors in one unit eliminates the need for separate sensors and reduces installation costs |
Repair Information
If the HE-67xx Series Humidity Element fails to
operate within its specifications, replace the
unit. For a replacement humidity device,
contact the nearest Johnson Controls®
representative.
.png)
.png)
.png)
| Thương hiệu: | Johnson Controls |
| Xuất xứ: | Mexico |
| Màu sắc: | Xanh |
| Trọng lượng: | Cập nhật... |
| Kích thước: | Free Size |
| Model: | Humidity Element with Temperature Sensors |
