CD-2xx-E00-00 Series

CD-2xx-E00-00

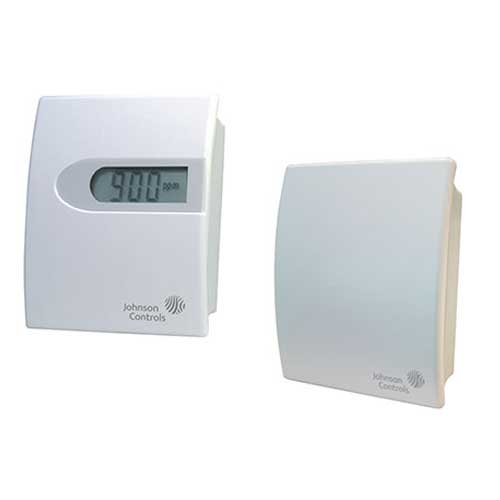

WALL MOUNT - CO2 AND TEMPERATURE TRANSMITTER
The CD-2xx-E00-00 series is a wall mount transmitter for measuring the
CO2 levels and the relevant temperature within Heating, Ventilation and Air
Conditioning applications.
The CD-2xx Series incorporates a single beam dual wavelength NDIR CO2 sensor, which compensates for ageing effects,
is highly insensitive to pollution and offers outstanding long term stability.
A multiple point CO2 and T factory adjustment procedure leads to excellent CO2 measurement accuracy over the entire
T working range.
This compact wall-mounted device produces 0 to 10 V or 4 to 20 mA signals and it is designed to work as part of any HVAC
control system.
This new CO2 transmitter is easy to install, offers a full 3-year warranty, and requires no maintenance or field calibration
FEATURES
„ Power supply 15...35 VDC / 24 VAC
„ 0…10 V or 4…20 mA CO2 and temperature output
„ Models with display
„ Snap-on enclosure
„ Outstanding long-term stability
„ CO2 factory calibration certificate
