HT-1300 Series

HT-1300
DUCT MOUNT

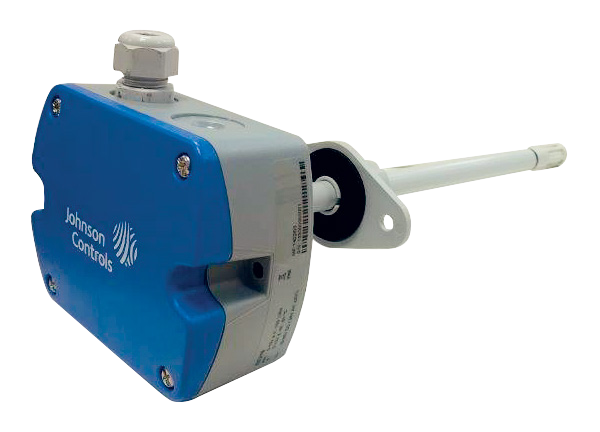

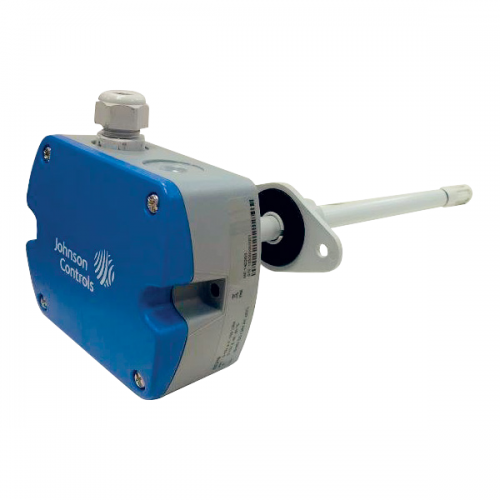

Specially designed for HVAC, the HT-1300 duct mount humidity sensor is
a cost effective, highly accurate and reliable solution for measuring relative air
humidity and temperature.
The enclosure minimizes installation cost and provides outstanding protection against contamination and condensation, thus
ensuring flawless operation.
The HT-130x-UD1 employs the new humidity/temperature sensor with excellent long-term stability and resistance to
pollutants. Long term performance is granted by the PTFE membrane fitted to the standard protection cap, suitable for most
common HVAC applications.
The standard protection cap can be replaced with a series of alternative protection caps specially designed for harsh
environments.
FEATURES
„ Power supply 15...35 VDC / 24 VAC ±20%
„ Humidity range 0...100%
„ Humidity output 0...10 VDC
„ Humidity accuracy 2,5% from 10 to 95% RH
„ Temperature outputs 0...10 VDC or passive
„ Duct probes length 200 mm
„ Protection caps for harsh environment application
„ Protection class: IP65
„ Inspection Certificate according EN 10204:2004
