CD-Px000 Series

Carbon dioxide gas (CO2) is a component of the earth‘s
atmosphere. Although carbon dioxide is invisible and odorless,
an increased CO2 content in the indoor air leads to fatigue and
reduced concentration for humans.
In rooms with high occupancy, such as conference rooms and
theatres, the negative effects on humans becomes all the more
evident.

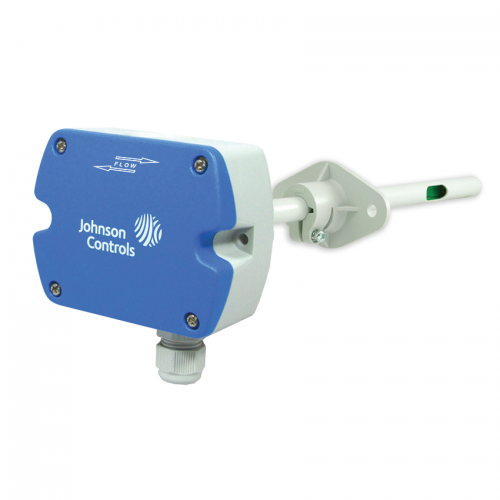

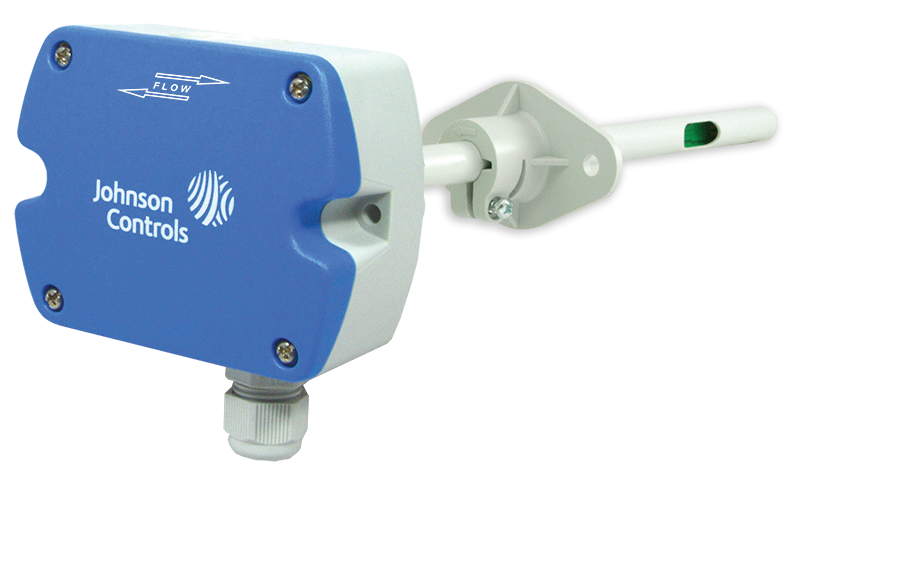

The CD-P series duct mount transmitters are designed for the
measurement of Carbon Dioxide (CO2) and Temperature in
Heating Ventilating and Air Conditioning applications where
Demand Control Ventilation (DCV), fresh air and indoor Air
Quality (IAQ), and rooftop air handling economizer control
systems are often required.
The CD-Px000 sensors incorporate the a dual wavelength
NDIR CO2 sensor, which compensates for ageing effects, is
highly insensitive to pollution and offers outstanding long term
stability.

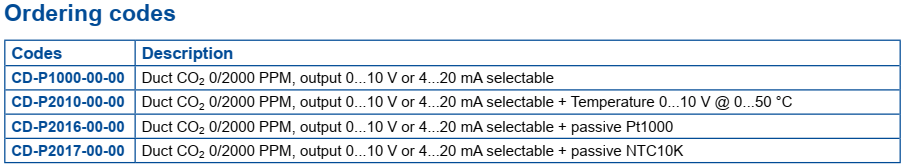

The CD-P1000 Transmitter is available with CO2 output only,
0-10 V or 4-20 mA while the CD-P2000 range offers CO2 and
Temperature measurement with active or passive outputs.
A multiple point CO2 and Temperature factory adjustment
procedure leads to excellent CO2 measurement accuracy over
the entire temperature working range.
Features
• Support demand control ventilation
Offer potential for 10 to 70% energy savings
• Single beam dual wavelength NDIR CO2 sensor
Highly insensitive to pollution and outstanding long term stability
• Range includes CO2 + temperature outputs
Reduce installation time and cost
• 0…10 V or passive temperature output
Suitable for a wider range of applications
• Factory calibration certificate
Test report according to DIN EN10204 - 2.2 included
