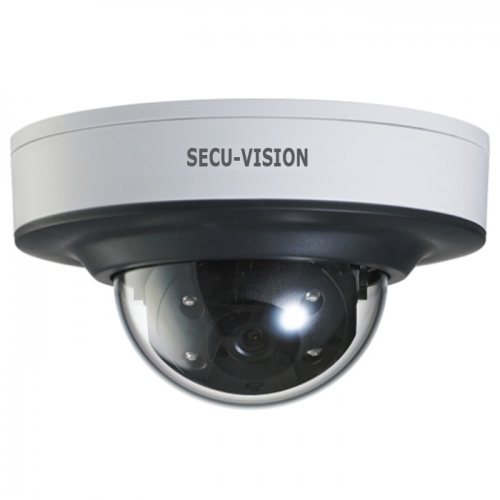

SVNI10A51LR

Model Name

SVNI10A51LR

CPU

ARM1176JZF-S (400 MHz, Instruction cache: 32kbyte, data cache

Flash

2Gbit Flash memory

SDRAM

2Gbit DDR3

Image sensor

2.0 Mega 1/2.9' SONY progressive scan CMOS

Total Pixels

1952(H) x 1116(V) 2.18 Megapixel

Effective Pixels

1944(H) x 1104(V) 2.14 Megapixel

S/N Ratio

More than 50dB

Min. Illumination

0 Lux (IR On)

IR Distance

30M (4 Built-in Power LED’s)

Day & Night

ICR

Lens

2.8mm Wide angle Megapixel Board Lens(option 3.6mm)

Video compression

H.264 High Profile@4.0, MJPEG–Image quality: 3 Steps

Resolutions

Up to 1920 x 1080  2MP

Frame rate

Triple Stream/ 1st stream: 30fps@1920x1080
2nd stream: 30fps@1280x720 , 3rd stream: 30fps@640x480

Video streaming

Triple stream with H.264/MJPEG, Adjustable frame rate, CBR/VBR in H.264

Pan/Tilt/Zoom

Digital PTZ

Corridor view

Corridor view in H.264 (90degree/ 270degree)

Image setting

Brightness, contrast, Sharpness, Day & Night, Auto White Balance
Auto Exposure, Privacy Mask, DSS, Effect - Color, Mirror/V-Flip, etc.

Security

Password Protection, User access log, HTTPS encryption

Supported protocol

HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP,
 RTSP, RTP, TCP, UDP, ICMP, DHCP

Intelligent video

Object based Motion detection up with 12x 12 block
Tamper detection with Global scene change and defocus.

Alarm events

File upload via ftp, E-mail, Notification via email,SD Card.

Video buffer

5MB pre-alarm and 180 sec (max) post-alarm

Firmware upgrade

Remote upgrade via network

API

CGI Interface document, ActiveX Interface(ocx(dll) + document)

Power Source

DC12V/1.5A, PoE(Power over Ethernet): 802.3af-Optional

Power Consumption

Max. 5W with IR

Net Weight

280g (Camera only)

LED's

Power, Network Connection

Dimension

130mm(Dia.) x77mm

Operating Temperature

-10 degree~50 degree Celsius(14F~122F)

Storage Temperature

-20 degree~60 degree Celsius(-4F~140F)

Included Software

NVR C/S (16 Channel), IP Installer (Windows only)
