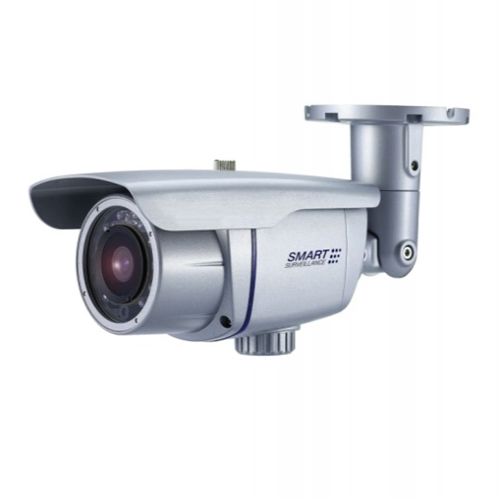

SVNN61S54XR

Model Name

SVNN61S54XR

CPU

ARM1176JZF-S (400 MHz, Instruction cache: 32kbyte, data cache

Flash

2Gbit Flash memory

SDRAM

2Gbit DDR3

Image sensor

2.0 Mega 1/2.9' SONY progressive scan CMOS

Total Pixels

1952(H) x 1116(V) 2.18 Megapixel

Effective Pixels

1944(H) x 1104(V) 2.14 Megapixel

S/N Ratio

More than 50dB

Min. Illumination

0 Lux (IR On)

IR Distance

50M ( Built-in Power LED’s)

Day & Night

ICR

Lens

3~12mm Motorized Zoom Lens

Video compression

H.264 High Profile@4.0, MJPEG–Image quality: 3 Steps

Resolutions

Up to 1920X1080  2MP

Frame rate

Triple Stream /1st stream: 30fps@1920x1080
2nd stream: 30fps@1280x720 ,3rd stream: 30fps@640x480

Video streaming

Triple stream with H.264/MJPEG, Adjustable frame rate, CBR/VBR in H.264

Pan/Tilt/Zoom

Digital PTZ

Corridor view

Corridor view in H.264 (90degree/ 270degree)

Image setting

Brightness, contrast, Sharpness,Day & Night,Auto White Balance
Auto Exposure,Privacy Mask,DSS, Effect - Color, Mirror/V-Flip, etc.

Audio Streaming

Two Way

Audio Compression

G.711

Sample Rate

8KHz

Alarm In/Out

In: 1, Out: 1

Security

Password Protection, User access log, HTTPS encryption

Supported protocol

HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP,
 RTSP, RTP, TCP, UDP, ICMP, DHCP,SNMP

Intelligent video

Object based Motion detection up with 12x 12 block
Tamper detection with Global scene change and defocus.

Alarm events

File upload via ftp, E-mail, Notification via email,SD Card.

Video buffer

5MB pre-alarm and 180 sec (max) post-alarm

Firmware upgrade

Remote upgrade via network

API

CGI Interface document, ActiveX Interface(ocx(dll) + document)

Power Source

DC12V/1.5A, PoE(Power over Ethernet): 802.3af-Optional

Storage

Micro SD Slot (Built-in)

Power Consumption

Max. 8W with IR

Net Weight

1,300g

LED's

Power, Network Connection

Dimension

88mm(W) x 122mm(H) x 247.3mm(D) incl. Bracket

Operating Temperature

-10 degree~50 degree Celsius(14F~122F)

Included Software

NVR C/S (16 Channel), IP Installer (Windows only)
