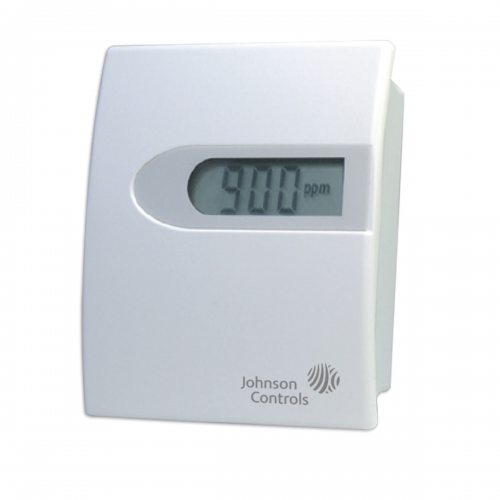

CD-3xx-E00-00 Series

CD-3xx-E00-00
WALL MOUNT - CO2 / RELATIVE HUMIDITY
AND TEMPERATURE TRANSMITTER
The CD-3xx-E00-00 series is a wall mount transmitter for measuring the CO2
levels, the relevant humidity and the temperature within Heating, Ventilation and Air Conditioning applications.
The CD-3xx series incorporates a single beam dual wavelength NDIR CO2 sensor, which compensates for ageing effects,
is highly insensitive to pollution and offers outstanding long term stability.
A multiple point CO2 and T factory adjustment procedure leads to excellent CO2 measurement accuracy over the entire
T working range.
The CD-3xx room sensor are designed to work as part of any HVAC control system.
This new CO2 transmitter is easy to install and requires no maintenance or field calibration.
FEATURES
„ Power supply 15...35 VDC / 24 VAC
„ 0…10 V CO2 and relative humidity output
„ 0…10 V and Pt1000 temperature output on the same device
„ Models with display
„ Snap-on enclosure
„ Outstanding long-term stability
„ CO2 factory calibration certificate
